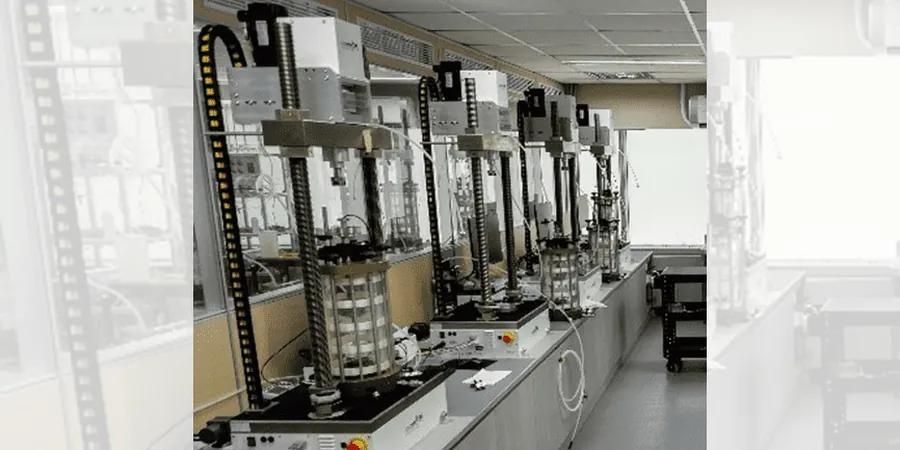

The soil beneath a high-rise in Surfers Paradise behaves very differently from the sandier ground you find around Coomera. That contrast is exactly why relying on a single soil model across Gold Coast can lead to expensive foundation mistakes. We run triaxial tests on undisturbed samples to capture how each soil layer will actually perform under load. Whether the project sits on the coastal beach sands or the more clayey profiles further inland, knowing the drained and undrained shear strength is non-negotiable. For deeper excavations where lateral pressures matter, we often combine this with a presurometro test to cross-check in-situ stiffness. The result is a clear, defensible set of parameters for your geotechnical design.
Triaxial test results from Gold Coast sands and clays consistently show that local friction angles are 2-4 degrees lower than generic textbook values.
Methodology and scope
Local considerations
In Gold Coast, many times we see that construction teams rush foundation design based on a single SPT blow count correlation. That shortcut ignores the stress path dependency of the soil. A sand that looks dense at shallow depth can lose strength under sustained loading or during a wet season event. The triaxial test reveals that behaviour before you pour concrete. Without it, you risk differential settlement in the first year — especially on the alluvial deposits near the Nerang River. One residential project in Benowa recently avoided a slab redesign after our undrained triaxial results showed the clay had 30% lower strength than the initial correlation suggested.
Applicable standards
AS 1726:2017 Geotechnical site investigations, AS 1289.6.4.1 Standard Test Method for Unconsolidated-Undrained Triaxial Test, AS 1289.6.4.2 Standard Test Method for Consolidated-Undrained Triaxial Test, AS 4678-2002 Earth retaining structures (reference for parameter use)
Associated technical services
Unconsolidated Undrained (UU) Triaxial
Rapid test for total stress parameters in cohesive soils. Ideal for short-term stability checks on clay fills and natural clay layers common in the Gold Coast hinterland.
Consolidated Undrained (CU) Triaxial with Pore Pressure
Measures effective stress strength parameters (c', φ') and pore pressure response. Used for long-term foundation design and slope stability analysis in areas like Tallebudgera.
Consolidated Drained (CD) Triaxial
Slow drained test for granular soils and stiff clays. Provides reliable φ' for free-draining sands and gravels found in Gold Coast coastal deposits.
Typical parameters
Frequently asked questions
How does the triaxial test differ from a simple direct shear test for Gold Coast soils?
The triaxial test controls the confining pressure and measures the full stress-strain response and pore pressure changes. Direct shear forces a failure plane and does not capture the intermediate principal stress. For Gold Coast clays with anisotropic fabric, triaxial gives more reliable effective strength parameters.
What sample quality is required for a triaxial test on Gold Coast sand?
Undisturbed sampling is preferred, but for clean sands we often use reconstituted specimens at target density. The sample must be fully saturated before shearing — we back-pressure saturate to a B-value above 0.95. Thin-walled tube samples from your site investigation work well for cohesive layers.
How much does a triaxial test cost in Gold Coast?
A standard set of three UU or CU triaxial tests with report typically ranges between AU$2,700 and AU$4,030 depending on sample size, number of confining stages, and urgency. We can provide a fixed quote once we know your sample count and test type.
