In Gold Coast, the combination of coastal sand deposits, volcanic residual soils, and a subtropical climate with over 1,200 mm of annual rainfall makes factor of safety (FS) calculation an essential step for any geotechnical design. AS 4678:2002 for earth-retaining structures and AS 1726:2017 for site investigation set the framework for minimum acceptable FS values. For slope stability, we typically target a minimum FS of 1.5 under static conditions, increasing to 1.2 for seismic events. This is especially relevant given the city's proximity to the Gold Coast Seaway and areas like Burleigh Heads, where weathered rhyolite and colluvium dominate. Before finalizing a design, we often cross-reference our FS results with cimentaciones sísmicas to verify that seismic bearing capacity isn't the governing factor.
In Gold Coast's weathered profiles, a static FS of 1.5 often drops below 1.1 when saturation exceeds 90% during La Niña events.
Methodology and scope
Local considerations
In Gold Coast, we frequently observe that designers rely on generic soil parameters from published literature rather than site-specific testing. The consequence? A calculated FS of 1.5 on paper may drop to 1.1 after a week of La Niña rains, especially in areas like Pimpama or Helensvale where the water table is within 2 m of the surface. Another common oversight is ignoring the suctions in unsaturated residual soils. When those soils dry out, they gain apparent cohesion; but after prolonged wetting, strength can halve. We've seen retaining wall failures precisely because the design FS didn't account for this reduction. That's why we always run saturation-sensitive analyses and recommend field permeabilidad campo tests to calibrate infiltration rates before finalizing FS values for drainage-sensitive designs.
Applicable standards
AS 4678:2002 – Earth-retaining structures, AS 1726:2017 – Geotechnical site investigations, AS/NZS 1170.0:2002 – Structural design actions, general principles
Associated technical services
Slope Stability Analysis

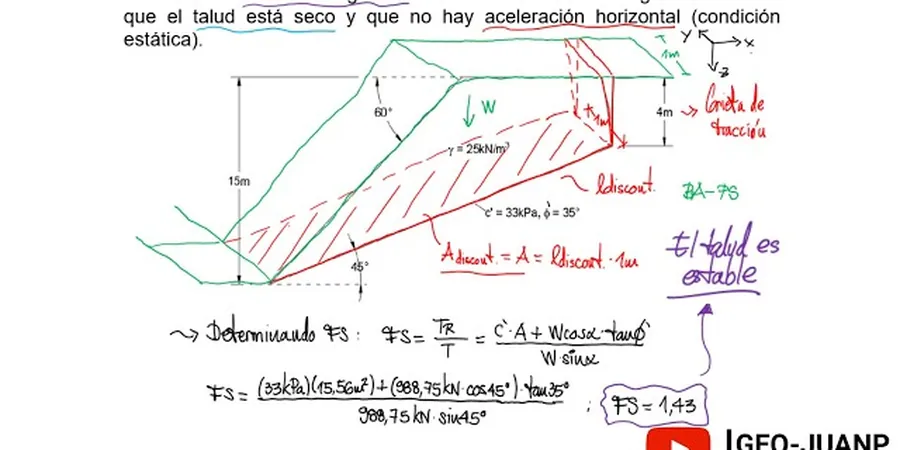

Limit equilibrium and finite element analysis for natural slopes and cut batters. We model circular (Bishop) and non-circular (Spencer) failure surfaces, including groundwater seepage scenarios typical of Gold Coast's wet season. Output includes FS contours and sensitivity graphs for c' and φ'.
Retaining Wall FS Verification
Check overturning, sliding, bearing, and global stability for cantilever, gravity, and mechanically stabilized earth (MSE) walls per AS 4678. We incorporate seismic coefficients from AS/NZS 1170.4 and account for surcharge loads from Gold Coast's canal-side developments.
Typical parameters
Frequently asked questions
What is the minimum acceptable factor of safety for slope stability in Gold Coast?
For permanent slopes under static conditions, AS 4678 recommends a minimum FS of 1.5. For temporary excavations or seismic events, values of 1.2 and 1.1 respectively are accepted, provided the design accounts for groundwater fluctuations typical of the region.
How much does a factor of safety calculation cost in Gold Coast?
Depending on the complexity and number of boreholes, the cost typically ranges from AU$930 to AU$2,520. This includes laboratory testing (triaxial or direct shear), limit equilibrium analysis, and a report signed by a chartered geotechnical engineer.
Which failure surface method is best for Gold Coast's residual soils?
For the weathered rhyolite and basalt profiles common in the hinterland, Spencer's method is preferred because it satisfies both force and moment equilibrium, handling non-circular surfaces that often develop along relict joint planes.
Do you include groundwater effects in the FS calculation?
Yes. We model both hydrostatic and seepage conditions using the piezometric data from standpipes installed during site investigation. For Gold Coast's coastal zones, we also simulate tidal fluctuation in canal estates, which can reduce FS by 0.2 to 0.3 during king tides.
Can you calculate FS for liquefaction in Gold Coast sands?
Absolutely. We follow the NCEER/Youd-Idriss simplified procedure using corrected SPT blow counts or CPT tip resistance. For areas like Surfers Paradise or Main Beach where loose Holocene sands are present, we typically find FS values below 1.0 for M7.5 earthquakes, indicating high liquefaction potential.
