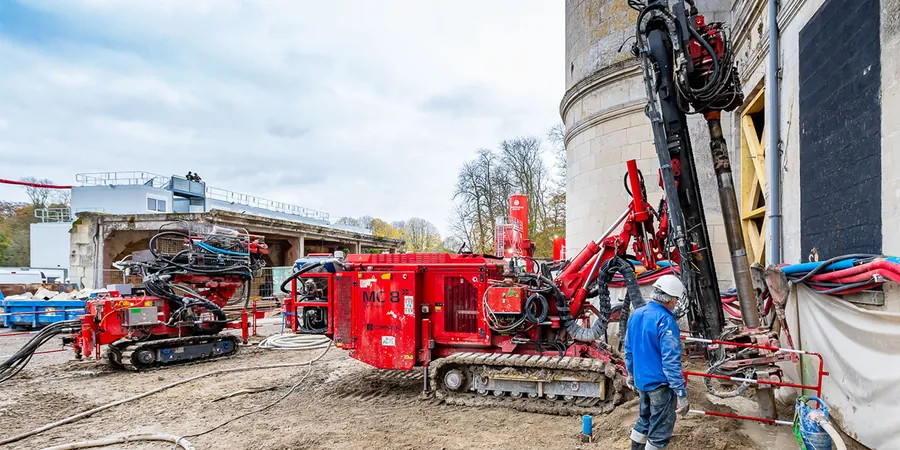

On Gold Coast, our jet grouting design typically mobilises a high-pressure pump skid rated to 600 bar, a drill rig with triple-rod assembly, and a cement silo with colloidal mixer. The equipment is set up directly on the working platform, often within tight easements along the Nerang River or near canal estates. We first conduct a site calibration test to verify the effective diameter, then adjust the injection pressure, rotation speed, and withdrawal rate to match the local sand or clay profile. This in-situ tuning is critical because Gold Coast's alluvial layers have variable density and permeability that directly affect the column geometry. The whole process runs under continuous monitoring of flow rate and grout density to ensure the design intent is met from the first panel to the last.
Jet grouting design for Gold Coast requires a staged grout mix to counter the high water table and ensure a minimum UCS of 2 MPa.
Methodology and scope
- Injection pressure: 350 to 550 bar depending on soil type
- Rotation speed: 10 to 20 rpm for cohesive soils
- Withdrawal rate: 25 to 50 mm/s for granular strata
Local considerations
A recurring mistake on Gold Coast projects is specifying a single jet grouting design across all soil units without adjusting for the transition from sand to clay. This leads to columns that are undersized in the sandy sections and oversized in the clayey ones, causing both cost overruns and structural gaps. Another common error is neglecting the tidal fluctuation: if the jetting is performed during low tide and the water table rises within 12 hours, the fresh column can be diluted. We avoid this by scheduling injection windows that match predicted tidal levels and by using a double-fluid system that maintains a stable cutting front regardless of groundwater changes.
Applicable standards
AS 1726-2017 Geotechnical site investigations, AS 4678-2002 Earth-retaining structures, AS/NZS 1170.0:2002 Structural design actions, AS 1289.6.7.3 Standard practice for grouting
Associated technical services
Feasibility and geometry definition
We determine the required column diameter, spacing, and overlap ratio based on the soil profile and structural loads. This stage includes a cost estimate and a preliminary execution schedule.
Execution design and parametric study
We define the injection parameters (pressure, flow, rotation, withdrawal) for each soil unit, perform a trial panel, and refine the mix design to meet strength and permeability targets.
Quality control and verification
We supervise the field execution, collect wet samples for UCS testing, conduct coring on selected columns, and issue a final compliance report with as-built column dimensions.
Typical parameters
Frequently asked questions
What is the typical cost range for jet grouting design in Gold Coast?
The cost for jet grouting design in Gold Coast typically ranges from AU$2,340 to AU$10,930, depending on the number of columns, soil complexity, and the extent of field calibration required. This includes the site visit, parametric study, and final design report.
How deep can jet grouting columns be designed on the Gold Coast?
We have designed columns up to 25 metres deep in the Gold Coast area, limited mainly by the drill rig's torque and the ability to maintain a stable borehole in loose sands. Deeper treatments may require a stepped approach with pre-drilling.
Does the high water table affect the jet grouting design?
Yes, the high water table near the coast reduces the effective jetting energy. We compensate by using a double-fluid system (water + air) and by increasing the grout density for the first 5 metres below the water table to prevent dilution.
What soil types are most suitable for jet grouting in this region?
Jet grouting works well in Gold Coast's clean sands and gravelly layers, where the high-pressure jet can cut and mix efficiently. In soft clays and silts, the column diameter is smaller, so we adjust the rotation speed to around 15 rpm to improve soil-cement mixing.
How do you verify the column diameter after installation?
We verify the column diameter by coring at least 5% of the columns and measuring the core recovery. Additionally, we conduct a trial panel at the start of the project where we expose the columns by excavation to confirm the diameter before proceeding with production.
