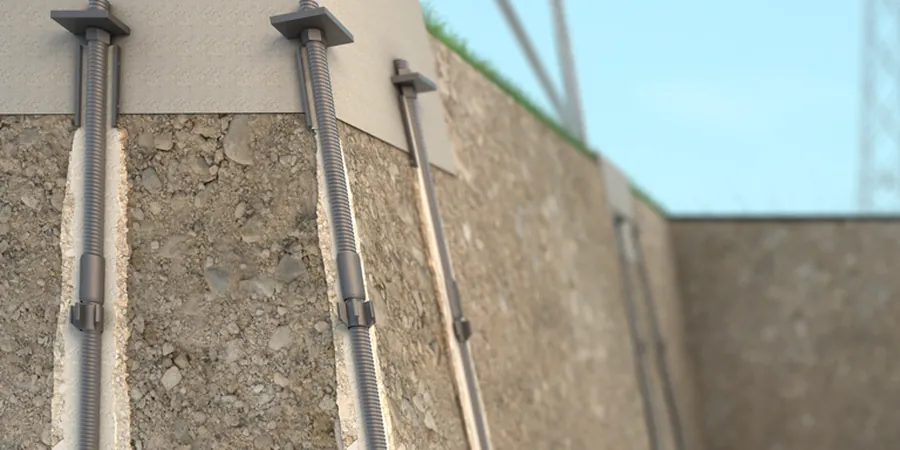

Gold Coast grew fast from the 1950s, spreading from Surfers Paradise inland over sandy coastal plains and old dune systems. The original beachside development sat on deep Quaternary sands, but as the city pushed west toward the hinterland, engineers hit weathered rock and colluvium. That mix of loose sand and stiff residual soil creates a tricky foundation problem. For narrow urban lots or sites with limited headroom, conventional piling rigs simply don't fit. That is where micropile design steps in. Small-diameter, high-capacity piles can be installed with compact rigs through existing structures or tight setbacks. We have used cimentaciones-sismicas criteria to check seismic performance on several Gold Coast infill projects. The method works especially well for retrofitting older buildings on the coastal strip.
One micropile in Neranleigh-Fernvale siltstone took 350 kN working load from a 150 mm diameter casing — proof-tested to 525 kN.
Methodology and scope
- Bar diameter: 32–50 mm high-strength steel (yield > 500 MPa)
- Casing: 114–178 mm OD, sacrificial or extractable
- Grout: neat cement w/c 0.45–0.50, 28-day UCS ≥ 30 MPa
Local considerations
Gold Coast sits about 70 km southeast of Brisbane, with a population now exceeding 700,000. The city lies in a seismically stable region, but ground conditions pose real risks. Loose Holocene sands along the coast can liquefy under moderate shaking — the 1989 Newcastle earthquake (M5.6) caused damage 800 km away. Inland, collapsible soils on the foothills settle suddenly when wetted. Micropile design mitigates both: tip bearing in rock bypasses loose layers, and the steel casing resists lateral spreading. For a recent project in Southport we used estabilidad-taludes analysis to confirm slope stability around the pile cap excavation. The combination of high groundwater and narrow access requires careful planning from day one.
Applicable standards
AS 2159-2009 Piling — Design and installation, AS 1726-2017 Geotechnical site investigations, AS/NZS 1170.4-2007 Structural design actions — Earthquake, National Construction Code (NCC) 2022 — Part B1 Structure
Associated technical services
Micropile Design for New Construction
Designed for residential and light commercial projects on constrained sites. We size the pile layout to match column loads from the structural engineer. Output includes pile capacity curves, grout mix design, and test pile program.
Micropile Retrofit & Underpinning
For existing buildings needing foundation upgrade — heritage structures in Southport or beachfront apartments with differential settlement. We design micropiles that go through the existing footing with minimal disruption. All work follows AS 2159 and NCC seismic requirements.
Typical parameters
Frequently asked questions
How deep are micropiles typically installed in Gold Coast?
Depths range from 8 m to 18 m depending on rock level. Along the coast, the sand layer goes 6–12 m before hitting siltstone. Inland, weathered rock may be shallower. We always confirm depth with a site investigation before final design.
What is the typical cost range for micropile design in Gold Coast?
For a standard residential project, expect between AU$2,200 and AU$6,260 for design, testing, and documentation. Larger commercial work with multiple test piles can exceed this. Contact us for a quote tied to your specific site conditions.
Can micropiles be installed inside an existing building?
Yes. The compact rig fits through a standard door or under a low ceiling. We have done installations in basement car parks and under timber floor joists. The process is low-vibration, so it suits occupied buildings. Access and headroom need to be checked first.
