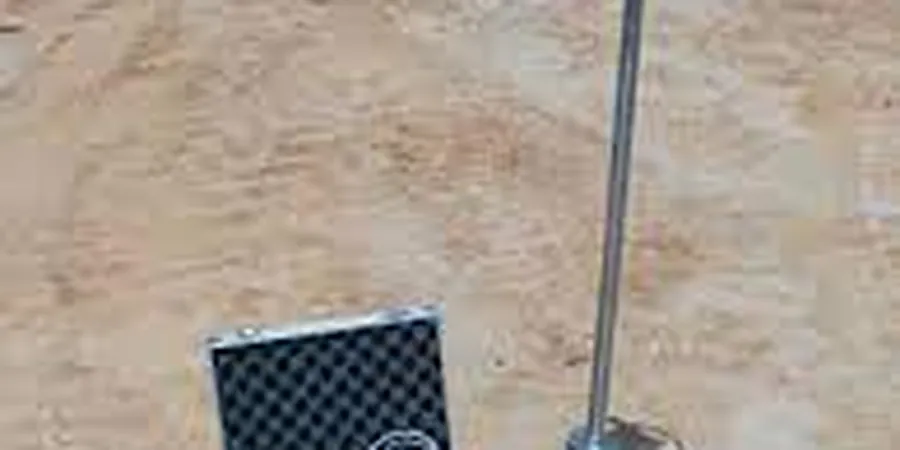

Gold Coast sits on a mix of Quaternary alluvium, coastal sands, and residual soils from the Neranleigh-Fernvale beds, meaning bearing conditions can shift dramatically within a single block. About 68% of the city's developable land lies within 10 km of the coastline, where loose sands and soft estuarine clays dominate the upper profile. For any slab-on-grade, pavement layer, or shallow foundation, the plate load test (PLT) is the most direct method to measure in-situ deformation modulus and bearing capacity. It gives you a load-settlement curve on the spot, not an extrapolated lab value. Before committing to a foundation design, we often pair the PLT with a presurometer test on deeper strata when lateral stiffness is a concern, or with cimentaciones superficiales analysis when the bearing layer is shallow but variable.
A single PLT on a prepared subgrade can confirm or reject the design bearing pressure before any concrete is poured — it is the cheapest insurance against settlement failure.
Methodology and scope
Local considerations
AS 1726-2017 and the Queensland Development Code both require that bearing capacity for ultimate limit state design be verified in situ when the geotechnical model shows medium to high variability. In Gold Coast, where Holocene sand layers can be underlain by stiff Pleistocene clays at only 3 m depth, a PLT on the founding stratum catches the real stiffness before the footing is poured. If you skip this step and rely on conservative tabulated values, you either overdesign the footing (wasting concrete and time) or underdesign it and risk differential settlement. The local council has flagged several residential subdivisions where PLT results were 40% lower than the assumed bearing pressure from SPT correlations alone.
Applicable standards
AS 1289.6.2.1-2001 (Determination of the bearing capacity of soil — plate load test), AS 1726-2017 (Geotechnical site investigations), Queensland Development Code MP 1.2 (Design and construction standards for residential slabs)
Associated technical services
Standard PLT for Shallow Foundations & Slabs
Performed on prepared subgrades or excavation bases using a 300 mm steel plate. Suitable for residential slabs, light commercial floors, and small retaining walls. We provide a full report with load-settlement curve, modulus of subgrade reaction, and ultimate bearing capacity in kPa.
Heavy-Duty PLT for Pavements & Industrial Floors
Uses a 600 mm plate with a 200 kN hydraulic reaction frame to test subbase and capping layers. Ideal for road pavements, warehouse floors, and hardstand areas. Results include Ev2 deformation modulus and k-value for rigid pavement design per Austroads.
Typical parameters
Frequently asked questions
How much does a plate load test cost in Gold Coast?
A standard PLT with a 300 mm plate and basic reporting typically ranges between AU$1,250 and AU$1,740 per test point, depending on site access, the number of load increments, and whether a reaction frame is required. For a 600 mm heavy-duty test, expect the higher end of that range. Volume discounts apply for multiple test locations on the same site.
What is the difference between a PLT and an SPT for bearing capacity?
The SPT measures the resistance to driving a split spoon sampler and gives an N-value, which is correlated to relative density and approximate bearing capacity through empirical charts. The PLT directly loads a plate at the founding level and measures actual settlement under a known stress. For design, the PLT provides the deformation modulus (Ev1/Ev2) and the modulus of subgrade reaction, whereas the SPT only gives an indirect estimate. We recommend both: SPT for profiling and PLT for verification at critical depths.
At what stage of a project should the plate load test be performed?
The ideal timing is after bulk earthworks and subgrade preparation but before placing the slab or pavement. The test surface must be undisturbed, at the final formation level, and compacted to at least 95% of standard Proctor density. If you test too early (e.g., before final compaction), the results will be unrepresentatively low. If you test after the slab is poured, it is too late to adjust the design.
Does the Gold Coast City Council require a PLT for residential slab approvals?
Not universally, but it is strongly recommended when the geotechnical report identifies site class P (problem sites) or when the bearing capacity from SPT correlations falls below 150 kPa. For engineered fill platforms exceeding 300 mm depth, the council may request PLT proof-rolling or a direct bearing test as a condition of the development permit. Our team can advise on specific subdivision requirements.
