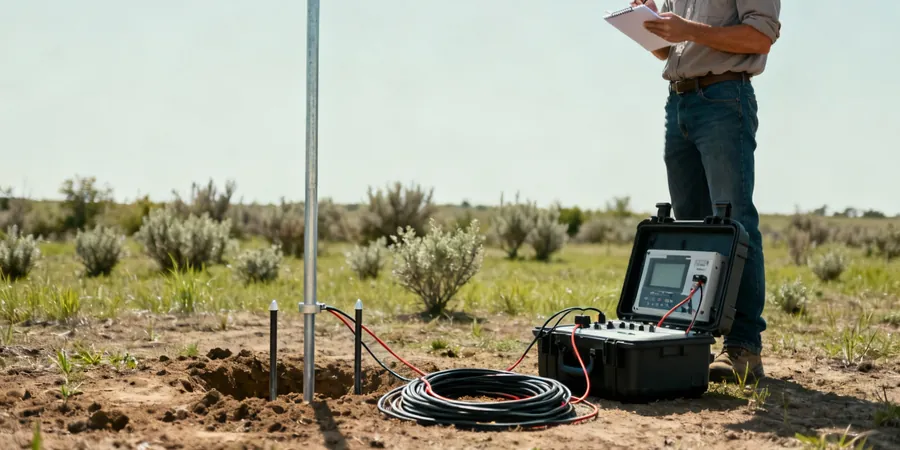

Gold Coast's rapid expansion from a small holiday town into Australia's sixth-largest city has pushed development onto a challenging mosaic of coastal sands, old dune systems, and weathered volcanic bedrock from the Mount Warning shield. The city's geology, shaped by Quaternary sea-level changes and the Tweed Shield Volcano, creates abrupt lateral variability in resistivity values that standard borehole programs often miss. Electrical resistivity / VES (Vertical Electrical Sounding) provides a continuous subsurface profile across large sites without drilling, making it particularly valuable for early-stage planning in developments from Palm Beach to the northern growth corridor. The method maps depth to bedrock, identifies paleochannels filled with conductive sands, and detects saline intrusion zones that affect both foundation design and groundwater management.
The resistivity contrast between dry coastal sands and clay-rich volcanic rock in Gold Coast creates clean signals that make VES arrays highly effective for depth-to-bedrock mapping.
Methodology and scope
Local considerations
The primary geological risk in Gold Coast is the presence of paleochannels — ancient river courses buried under younger sediments — which act as preferential pathways for groundwater and can contain loose, compressible sands or soft clays. These features are nearly invisible to standard auger drilling because their boundaries are sharp and unpredictable. Electrical resistivity surveys detect them reliably: a paleochannel filled with saturated sand will show resistivities below 50 ohm-m, contrasting sharply with the surrounding 200+ ohm-m of dry dune sand. Missing a paleochannel during site investigation can lead to differential settlement in residential slabs or unexpected groundwater inflow during basement excavation. For sites in the Helensvale to Coomera corridor, where Quaternary alluvium overlies weathered greywacke, we routinely deploy VES grids to map these channels before foundation design.
Explanatory video
Applicable standards
AS 1726 — Geotechnical site investigations (2017), AS 1289 — Standard Guide for Using the Direct Current Resistivity Method (2018), AS 4678 — Earth-retaining structures (referenced for groundwater assessment)
Associated technical services
Vertical Electrical Sounding (VES)
Single-point depth soundings using Schlumberger or Wenner arrays. Ideal for determining depth to bedrock, locating water tables, and identifying conductive clay layers. Each VES point provides a 1D resistivity model down to 40–80 m, calibrated against local geological logs.
2D Electrical Resistivity Tomography (ERT)
Multi-electrode arrays deployed along linear profiles to produce continuous 2D cross-sections. Useful for mapping paleochannels, assessing excavation conditions, and delineating saline intrusion boundaries. Typical line length: 200–500 m with 48–96 electrodes.
Resistivity for Groundwater & Contamination Studies
Low-resistivity anomalies can indicate conductive groundwater plumes, leachate from landfills, or saltwater intrusion in coastal aquifers. We design survey grids to monitor temporal changes in groundwater quality, with repeat surveys every 6–12 months.
Typical parameters
Frequently asked questions
What is the difference between VES and 2D ERT?
VES provides a 1D resistivity profile at a single point, with depth penetration controlled by increasing electrode spacing. 2D ERT uses a linear array of multiple electrodes to produce a continuous cross-section along the line. For Gold Coast projects, we typically recommend VES for discrete depth-to-bedrock checks and ERT for mapping lateral variability such as paleochannels or dune boundaries.
How much does an electrical resistivity survey cost in Gold Coast?
The cost for a standard VES survey in the Gold Coast area ranges from AU$870 to AU$1,860 depending on the number of soundings, site accessibility, and required depth. A full 2D ERT line with 48 electrodes typically falls between AU$1,500 and AU$3,200. These figures include mobilisation, data acquisition, inversion modelling, and a written report.
Can electrical resistivity replace boreholes entirely?
No, resistivity is a geophysical proxy, not a direct measurement. It requires calibration — typically against at least one borehole per resistivity line — to convert resistivity values into lithological interpretations. The real value is that it fills the gaps between boreholes, reducing the total number of holes needed while giving a more complete picture of subsurface variability.
What site conditions limit the effectiveness of VES?
Highly conductive surface layers, such as wet saline clays or thick landfill, can mask deeper resistive features. Similarly, buried metal pipes, power cables, or reinforced concrete slabs create strong artefacts that distort the resistivity signal. We always conduct a site walkover and utility clearance before deploying electrodes to identify and mitigate these sources of interference.
