The subtropical climate of Gold Coast brings heavy summer rainfall and high humidity, conditions that accelerate pavement deterioration through moisture ingress and fatigue cracking. We see it frequently: surface water infiltrates the base layers, softens the subgrade, and within a few seasons the asphalt begins to unravel at the edges. An existing pavement evaluation is the only reliable way to quantify the actual condition of each structural layer before committing to a rehabilitation strategy. Our team performs dynamic cone penetrometer tests, core extraction, and falling weight deflectometer surveys to measure in-situ stiffness and layer integrity. Before scheduling the field campaign, we often recommend a complementary georradar-gpr survey to map subsurface anomalies and locate hidden services without opening the pavement.
A proper existing pavement evaluation can extend the service life of a rehabilitated road by 8 to 12 years, avoiding premature failure from undetected layer weakness.
Methodology and scope

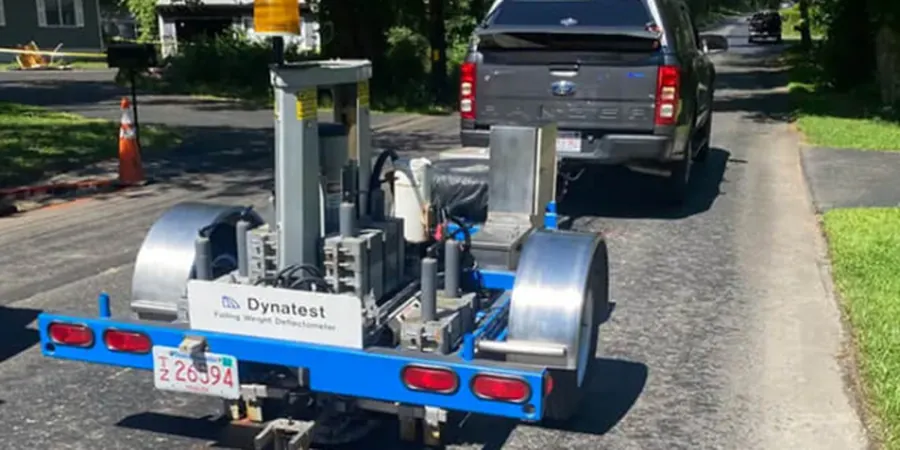

- Falling weight deflectometer (FWD) testing at 20 m intervals to determine layer moduli and remaining life
- Core recovery with crack mapping and visual condition rating per Austroads TM-256
- Dynamic cone penetrometer (DCP) profiles to assess subgrade strength in granular pavements
- Moisture content and density profiling on extracted samples
Local considerations
A recent project on Bundall Road involved a 500 m section where the surface looked sound but the base had lost 60% of its original stiffness due to capillary rise from the underlying clay subgrade. The contractor had planned only an overlay. Our evaluation detected the weak base and recommended full-depth reclamation with cement stabilization. Skipping the pavement evaluation would have meant the overlay failing within three years, triggering costly emergency repairs and disrupting traffic for weeks. That is the real risk: spending money on a treatment that does not address the actual failure mechanism.
Applicable standards
AS 1726 – Geotechnical site investigations, Austroads AGTM05 – Pavement structural assessment, AS 1289 – Falling weight deflectometer testing
Associated technical services
Core sampling and visual condition assessment
We extract 100 mm diameter cores from the asphalt and base layers to measure thickness, record crack patterns, and classify the condition per Austroads TM-256. Samples are sealed and transported to our NATA-accredited laboratory for moisture content and density determination.
FWD and DCP field testing with back-calculation
Falling weight deflectometer surveys at 20 m intervals provide deflection basins that we back-calculate to obtain layer moduli. Dynamic cone penetrometer tests complement the FWD data by profiling subgrade strength in granular sections where coring is impractical.
Typical parameters
Frequently asked questions
How long does an existing pavement evaluation take for a typical road section in Gold Coast?
For a 1 km stretch, field testing including FWD and core sampling takes two to three days. Laboratory analysis and reporting require another five to seven working days. We coordinate with local traffic management to minimise lane closures.
What is the difference between FWD and DCP testing in pavement evaluation?
FWD measures the deflection response of the entire pavement structure under a falling weight, from which we back-calculate layer moduli. DCP provides a continuous strength profile of the subgrade and granular layers by recording penetration per hammer blow. They complement each other: FWD for structural capacity, DCP for subgrade uniformity.
How much does an existing pavement evaluation cost for a road project in Gold Coast?
The cost typically ranges between AU$2,010 and AU$5,950 depending on road length, number of cores, and testing density. We provide a fixed-price quote after reviewing the project scope and site access conditions.
Do you evaluate pavements on residential streets in Gold Coast, or only major roads?
We assess all categories: local streets, collector roads, and arterial roads. For residential streets we adjust the test spacing to 40 m and use lightweight deflectometers to avoid traffic disruption. The same analytical rigor applies regardless of road class.
