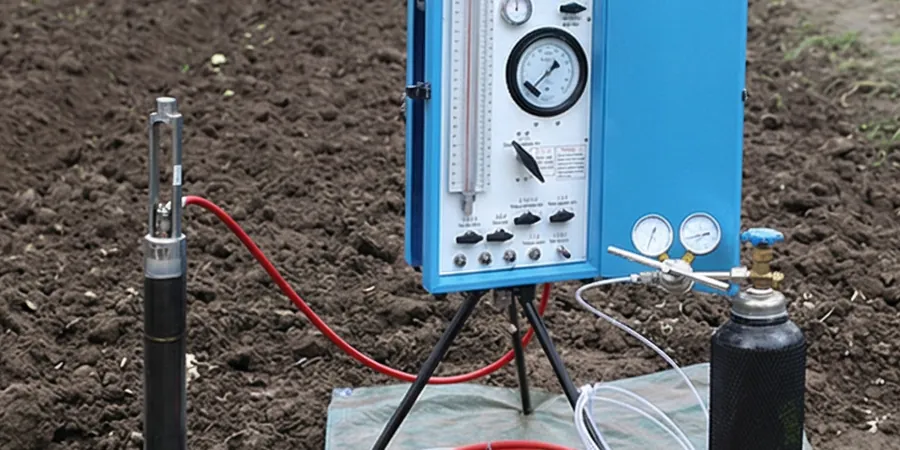

Gold Coast’s population surpassed 700,000 in 2024, driving rapid high-rise development along a coastline known for deep Quaternary sands and Holocene dune deposits. These unconsolidated sediments exhibit low relative density near the surface, making settlement predictions critical for foundation design. The Ménard pressuremeter test (PMT) directly measures the soil’s pressuremeter modulus (EM) and limit pressure (pL) at depth, providing the stiffness parameters needed to size shallow foundations and assess bearing capacity in these variable coastal soils. Before relying on PMT results alone, engineers often cross-check with a compression simple test on undisturbed samples to validate undrained strength, or use cimentaciones superficiales analysis to correlate PMT parameters with allowable bearing pressures.
The PMT delivers a direct measurement of soil stiffness at depth, unlike SPT correlations — essential for settlement-controlled design in Gold Coast’s sandy coastal deposits.
Methodology and scope
- Estimating immediate and consolidation settlement under service loads
- Designing driven piles and assessing skin friction via the pressuremeter method
- Verifying ground improvement effectiveness in loose sand zones
Local considerations
A common mistake among contractors on the Gold Coast is relying solely on SPT N-values to estimate soil modulus for settlement calculations in clean sands. The SPT measures resistance to driving, not stiffness — and in loose to medium sands the correlation between N and modulus is notoriously weak. Without a PMT, a 15-storey tower on the Broadbeach sand ridge might be designed with an overestimated modulus, leading to under-predicted settlements that exceed serviceability limits after construction. The result: differential movement in podium slabs, cracked cladding, and expensive retrofitting.
Applicable standards
AS 1726-2017 Geotechnical Site Investigations, AS 1289 Standard Test Method for Prebored Pressuremeter Testing in Soils, AS 4678-2002 Earth Retaining Structures, NATA accreditation (ISO 17025) for pressuremeter calibration
Associated technical services
Prebored PMT in Soil and Soft Rock
We drill NX or HQ boreholes to target depth, insert the Ménard probe, and perform a controlled volume-expansion test at 1.0 m intervals. Results include EM, pL, and pf for each test depth, plotted against elevation for use in foundation design.
Pressuremeter Interpretation and Settlement Analysis
Our senior engineers convert raw pressuremeter curves into design parameters: modulus of deformation (Edef), limit pressure (pL), and the pressuremeter modulus ratio (EM/pL). We then compute immediate settlement under strip, pad, or raft footings using the Menard method.
Pile Design from PMT Data
Using the pressuremeter method, we estimate shaft friction and base resistance for driven and bored piles in Gold Coast sands and clays. The approach follows the Bustamante–Gianeselli (LCPC) method, calibrated with local experience.
Typical parameters
Frequently asked questions
How does the Ménard pressuremeter test differ from the standard SPT?
The SPT measures resistance to dynamic driving and produces an N-value that correlates only indirectly to stiffness. The PMT measures the soil’s response to a controlled radial expansion, giving a direct reading of pressuremeter modulus (EM) and limit pressure (pL). This makes PMT far more reliable for settlement estimates in Gold Coast sands.
What are the typical PMT parameters for Gold Coast sands?
In the loose to medium-dense sands typical of the coastal strip, EM values range from 0.5 to 8 MPa, while limit pressures (pL) fall between 0.2 and 1.0 MPa. Denser deposits near the Broadbeach ridge may show EM up to 15 MPa. These numbers guide allowable bearing pressure and immediate settlement predictions.
What is the cost of a PMT campaign in Gold Coast?
A typical PMT campaign including drilling, testing, and reporting ranges between AU$1.450 and AU$1.960 per test depth, depending on access, depth, and number of tests. Volume discounts apply for projects requiring 10+ test points.
At what depths should PMT be performed for a high-rise tower?
For a 15- to 30-storey tower on Gold Coast sand, PMT is typically run every 1.0 m from ground surface down to 20–25 m, covering the zone of influence under the raft or pile cap. The deepest test should extend at least 1.5 times the foundation width below the base level.
Can PMT be used for ground improvement verification?
Yes. PMT is ideal for verifying vibrocompaction or dynamic compaction in loose sands because it measures the stiffness improvement directly. Testing before and after treatment in the same borehole location produces a clear modulus increase that can be used to confirm design targets.
