The coastal sands of Surfers Paradise and the residual clay profiles of the Hinterland represent vastly different ground conditions within Gold Coast. While the Broadbeach foreshore sits on Quaternary beach deposits with loose to medium-dense sands, the elevated suburbs like Mudgeeraba rest on weathered rhyolite and argillite. This geological contrast makes MASW / VS30 (shear wave velocity) testing essential for seismic site classification, as VS30 values directly control the design spectra under AS 1170.4. A single MASW profile can delineate the boundary between Site Class D and the more competent Site Class C, changing foundation costs significantly. Before finalizing the geotechnical model, engineers often pair the MASW survey with a resistivity tomography to map stratigraphy and a seismic refraction survey to confirm P-wave velocities in the unsaturated zone.
A single MASW profile can delineate the boundary between Site Class D and Site Class C, changing foundation costs significantly under AS 1170.4.
Methodology and scope
Local considerations
Gold Coast sits in Seismic Zone 1 under AS 1170.4, with an annual probability of exceedance of 1/500 for the design earthquake. While not a high-hazard zone, the presence of thick Holocene sand deposits along the Nerang River and Broadwater creates a liquefaction susceptibility that depends entirely on the shear wave velocity profile. A VS30 below 360 m/s in these coastal areas classifies the site as Site Class D (stiff soil), where ground motion amplification can reach factors of 1.5 to 2.0 relative to rock. The 2023 Queensland Geotechnical Reference explicitly warned that many existing high-rises in Surfers Paradise were designed using assumed Site Class C profiles without measured VS30 data. Without proper MASW / VS30 (shear wave velocity) testing, the seismic demand on foundations and structural elements remains unquantified.
Applicable standards
AS 1726-2017 Geotechnical site investigations, AS 1170.4-2007 Earthquake actions in Australia, AS 1289/D4428M-18 Standard test method for crosshole seismic testing, NEHRP Recommended Seismic Provisions (2015), ASCE/SEI 7-22 Minimum design loads for buildings
Associated technical services
1-D MASW Profiling for Site Class Assessment
Single-array MASW lines providing 1-D shear wave velocity profiles to 30 m depth. Used for seismic site classification per AS 1170.4 and NEHRP. Suitable for residential subdivisions, commercial buildings, and mid-rise structures in Gold Coast.
2-D MASW Tomography for Lateral Variability
Multiple overlapping MASW lines reconstructed into a 2-D shear wave velocity cross-section. Ideal for mapping paleochannels, buried bedrock valleys, and lateral stiffness changes in complex coastal deposits.
MASW + HVSR Combination for Deep Structure
Joint inversion of MASW dispersion curves and horizontal-to-vertical spectral ratios (HVSR) from ambient noise measurements. This hybrid approach resolves deeper velocity layers (50–100 m) and provides the fundamental site resonance frequency (f0) for dynamic analysis.
Typical parameters
Frequently asked questions
What is the difference between MASW and VS30 testing?

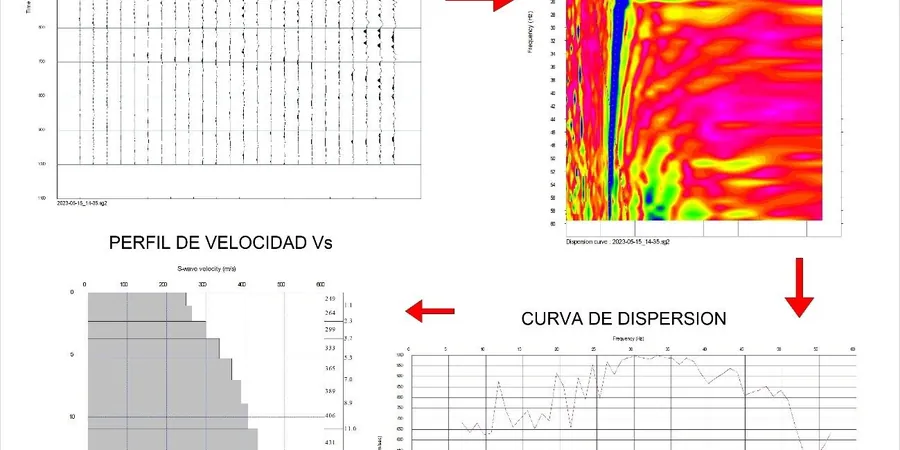

MASW (Multichannel Analysis of Surface Waves) is the field method used to measure Rayleigh wave dispersion and invert it for a shear wave velocity profile. VS30 is the time-averaged shear wave velocity of the top 30 meters, calculated from the MASW-derived profile. VS30 is the parameter used in building codes (AS 1170.4, ASCE 7) to assign the seismic site class (A through F). So MASW is the tool; VS30 is the output.
How much does MASW / VS30 testing cost in Gold Coast?
The typical cost for a MASW survey in Gold Coast ranges between AU$2,360 and AU$4,400 depending on the number of lines, site access, and processing complexity. A single 1-D line for a small residential site falls at the lower end, while a 2-D tomography project for a large commercial development sits at the upper end. The price includes mobilization, field acquisition, data inversion, and a report with VS30 and site class recommendation.
Which Gold Coast suburbs have the lowest VS30 values?
Suburbs underlain by Holocene alluvium and coastal sands — such as Surfers Paradise, Broadbeach, Main Beach, and Southport — typically exhibit VS30 values between 200 and 350 m/s, corresponding to Site Class D (stiff soil) or sometimes Site Class E (soft soil) if the sand is very loose. In contrast, the western suburbs like Nerang, Mudgeeraba, and Tallai, where residual soils overlie weathered rhyolite, show VS30 values between 400 and 700 m/s, placing them in Site Class C (very dense soil or soft rock).
Can MASW replace boreholes for seismic site classification?
MASW can replace boreholes for VS30 determination and site class assignment, but it does not replace the need for geotechnical boreholes for foundation design. MASW provides the stiffness profile (shear wave velocity) but does not recover soil samples for index properties, strength testing, or liquefaction evaluation. The optimal approach combines MASW for the VS30 profile with targeted boreholes for sampling and in-situ testing like SPT or CPT.
