Gold Coast sits on a mix of Quaternary sands, estuarine clays, and weathered basalt, with the water table often just two to three meters below surface. This combination makes geotechnical design of deep excavations a non-negotiable step for any basement or underground structure. In our experience, a shallow excavation in the Broadbeach area can hit perched water within the first meter, requiring careful dewatering and shoring design. We combine local borehole data with advanced numerical modeling to predict wall deflection and ground settlement. Before we finalize any shoring scheme, we always run a [MASW survey](/masw-vs30/) to map the stiffness profile, and we cross-check against CPT logs for continuous stratigraphy. This layered approach gives us confidence in the design parameters.
A shallow excavation in Broadbeach can hit perched water within the first meter — design without site data is a gamble.
Methodology and scope
Local considerations
The most common mistake we see on Gold Coast sites is under-estimating the groundwater pressure. Builders often assume a simple sand profile, then hit a clay lens that traps water and causes rapid wall saturation. Without a proper geotechnical design of deep excavations, the shoring can fail by basal heave or piping. We had a case in Surfers Paradise where a temporary sheet pile wall rotated 40 mm in two days because the tieback anchors were designed with assumed soil strength from a single borehole. The fix required additional rakers and a month of delay. That is why we insist on multiple investigation points and a staged excavation sequence.
Applicable standards
AS 4678-2002: Earth-retaining structures, AS 1726-2017: Geotechnical site investigations, AS/NZS 1170.2: Wind actions (relevant for temporary works)
Associated technical services

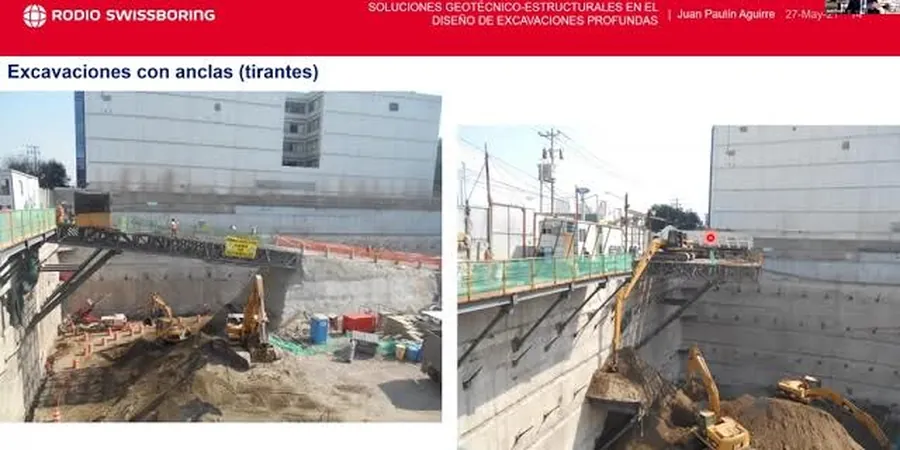

Shoring wall design
Cantilever, anchored, or braced walls with structural calculations and construction-stage checks.
Groundwater control
Dewatering system design including wellpoints, deep wells, and cut-off walls.
Settlement assessment
Prediction of ground movement adjacent to excavation and mitigation measures.
Anchor and strut design
Tieback anchors, rakers, and internal struts designed to AS 4678.
Typical parameters
Frequently asked questions
What is the typical cost range for geotechnical design of deep excavations in Gold Coast?
For a standard basement project (8-10 m depth), the geotechnical design fee typically ranges between AU$3,420 and AU$13,330, depending on site complexity, number of investigation points, and required numerical modeling. This includes boreholes, lab testing, shoring design report, and construction-phase support.
How deep can we excavate before shoring becomes mandatory in Gold Coast?
Under AS 4678, any excavation deeper than 1.5 m generally requires engineered shoring. In practice, with Gold Coast's sandy soils and high water table, we recommend shoring from 1.2 m for safety.
What soil parameters are most critical for deep excavation design?
The undrained shear strength (Su) in clays and the friction angle (phi) in sands are primary. We also rely on the stiffness modulus (E) for wall deflection estimates and the coefficient of permeability (k) for dewatering sizing.
Do you consider liquefaction risk for deep excavations near the coast?
Yes. For sites within 200 m of the shoreline or on Holocene sands, we perform a liquefaction assessment per Youd-Idriss (2001) and NCEER guidelines. If loose saturated zones are found, we recommend ground improvement before shoring installation.
